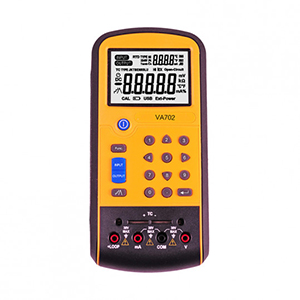

VA702 Calibrator

Lumel VA702 is a voltage/current/thermocouple calibrator that is designed as a source and measurement tool. It measures or outputs a 0 to 24mA DC current loop, 0 to 20 V DC voltage and supports thermocouple temperature measurements (Model dependant). Please note that the calibrator cannot measure and source simultaneously.



Description

Lumel VA702 is a voltage/current/thermocouple calibrator that is designed as a source and measurement tool. It measures or outputs a 0 to 24mA DC current loop, 0 to 20 V DC voltage and supports thermocouple temperature measurements (Model dependant). Please note that the calibrator cannot measure and source simultaneously.

Lumel are the producers of automation devices for measurement, control, transmission and visualisation of various industrial processes. They also provide Services of designing and manufacturing of automation systems.

Since 1954 Lumel brand has been known as a producer of quality measuring devices and high-pressure die-casting all over the world. Their high position in the market has been achieved thanks to continuous development, employees and modern technology in areas of research, design and production. Lumel delivers complex solutions for power and industrial automation sector as well as for automobile, chemical, steel, or HVAC industries

Their objective is to provide comprehensive solutions by designing intelligent systems based on the electronics Lumel manufactures, which are measuring and regulating equipment for industrial, automotive and military applications, as well as through service production of electronics.

View more Lumel products.

Follow us on Facebook

► Maximum voltage: 30V (between any jack and earth ground or between any two jacks)
► Storage temperature: -40℃ to 60℃
► Operating temperature: -10℃ to 50℃
► Operating altitude: Up to 2000 meters
► Temperature coefficient: ±0.01% of range per ℃ (for temperatures -10℃ to 18℃ and 28℃ to 55℃)
► Relative humidity:
- 95% up to 30℃
- 75% up to 40℃
- 45% up to 50℃
- 35% up to 55℃
► Power requirements: 6 x AAA batteries
► Size: 204mm (L) x 99mm (W) x 46mm (H)
► Weight: 460g (Including battery)
